Bluetooth ESL Solutions
The system architecture, modification method, hardware and software composition, etc. of the Bluetooth electronic shelf label, are the same as the base station electronic shelf label, the only difference is that the phone needs to establish communication with the electronic label through Bluetooth mode.
Application Value
Bluetooth ESL Application Scenarios
Bluetooth electronic shelf label parameters
1.54 inch Electronic Shelf Label
Size: 1.54 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 37.11*48.43*9.1mm
Weight: 18.9g
Resolution: 200*200
Battery spec: 1*600mAh

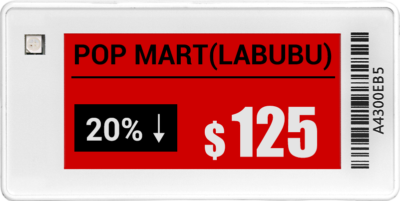

2.13 inch Electronic Shelf Label
Size: 2.13 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 72.31*34.31*9.1 mm
Weight: 29.3g
Resolution: 250*128
Battery spec: 2*600mAh
2.66 inch Electronic Shelf Label
Size: 2.66 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 82.93*41.41*9.1mm
Weight: 35g
Resolution: 296*152
Battery spec: 2*600mAh
2.9 inch Electronic Shelf Label
Size: 2.9 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 90.11*41.81*9.1mm
Weight: 36g
Resolution: 296*128
Battery spec: 2*600mAh

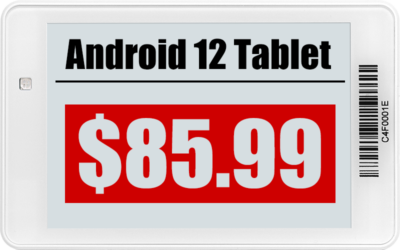

3.5 inch Electronic Shelf Label
Size: 2.13 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 102.86*50.14*9.1 mm
Weight: 43g
Resolution: 184*384
Battery spec: 2*600mAh
3.7 inch Electronic Shelf Label
Size: 3.7 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 104.1*58.11*9.1mm
Weight: 45.7g
Resolution: 240*416
Battery: 2*600mAh

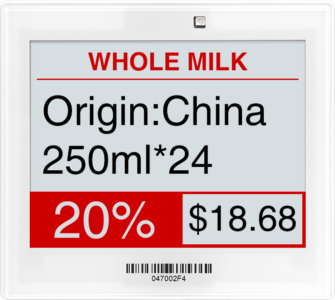

4.2 inch Electronic Shelf Label
Size: 4.2 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 98.4*89*10.7mm
Weight: 83g
Resolution: 400×300
Battery: 3*600mAh
5.8 inch Electronic Shelf Label
Size: 5.8 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 132.8*111.5*10.7mm
Weight: 122.1g
Resolution: 648×480
Battery: 3*600mAh
7.5 inch Electronic Shelf Label
Size: 7.5 inch
Technology: Bluetooth
Colors: BWRY
Module Size: 177.6*123.2*10.7mm
Weight: 168.9g
Resolution: 800×480
Battery: 4*600mAh
