OUR SOLUTION

The warehouse ESL solution is composed of Electronic Shelf Labels, Base Station,Passage Lights and ESL system.

LED Light provides quick and clear guidance for sending and receiving goods.he Label can show various types of storage information according to ERP or WMS.

Use the bottons on the label or PDA can do real-time collection of warehousing data.

灯出现在档案室
灯出现在档案室 (1)

Painpoints of the
Traditional Warehouse

1、Do not have clear guidance signals for sending and receiving.

2、Goods finding difficulty，Inventory information is not avai lable in real time.

3、ldentify the document number and goods modelmanually, low efficiency.

4、Error prone, cause loss.

灯出现在档案室 (1)

SOLUTION CUSTOMIZABLE

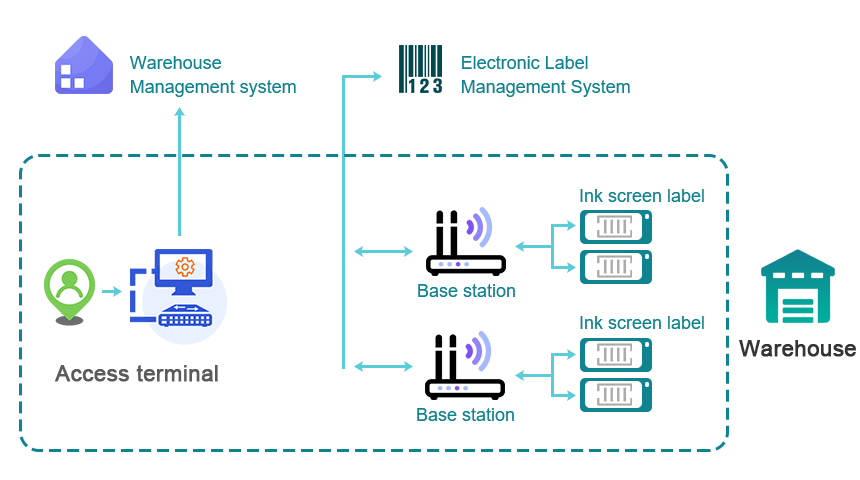

The warehouse ESL solution is composed of Electronic Shelf Labels, Base Station, Passage Lights and ESL system.

When WMS sends a lighting or screen refreshing command to the ESL system, the system decodes the signal command and send to passage light and ESL through the base station, then the light and ESL will react according to the command.

When the operator presses the label button, the pre-set information will be transmitted to the ESL system throught the base station, then the ESL system decodes and passes it to the WMS system.

Lighting Guidance
Open API Interface
Operation Info Return
Storage Info Display
Customizable Buttons

PRODUCT PARAMETER

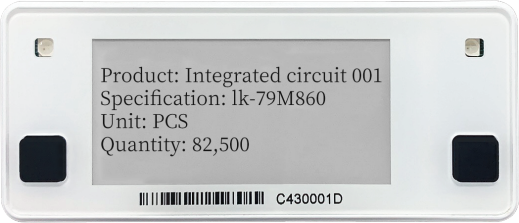

Warehouse ESL 2.13inch

ModelHipoink-ESL-55A
Resolution212×104
Dimension2.13inches  84×35.6×12.9mm
View Angle175°
Display ColorBlack and White
Display TechEPD
ScreenDot Matrix EPD
Communicaition2.4GHz Private Communication
OperatingVoltage3.0V
PowerDissipationRefresh current 3.75mA,standby current 5.65uA
Weight36.5g
MaterialABS+PC
Housing ColorWhite
BatteryCR2450x2,Replacable
WorkingTemperature0℃-50℃

Passage Light

Communication2.4GHz
MaterialABS
Operating VoltageDC9~24V4
Operating Current12mA(Not include external accessories)
Controller Size115*90*40mm
Light InterfaceIPWMx5+IOx2
485 Host interface1 Line+ 3 Ends
Working Temperature-10 ℃～ 50 ℃

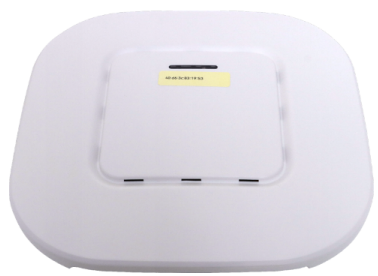

Base Station

Dimension190×190×40mm
Communication2.4GHz
Power SupplyPOE/DC
Mountig MethodCeilng/Table/wall hanging
